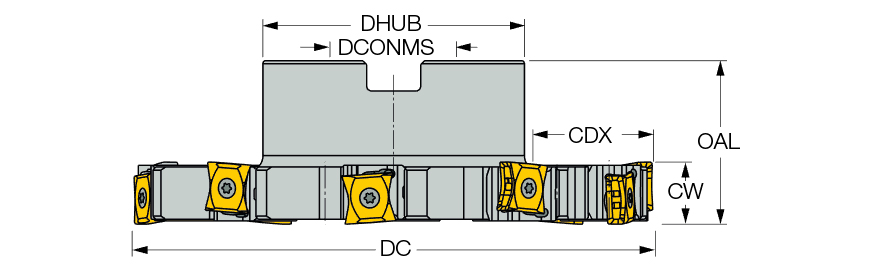

FDN D200-1925-40R-CAPM15
| Cutting Diameter (DC) | 200 mm | Overall Length (OAL) | 50 mm |
| Cutting Item Count (CICT) | 14 | Master Insert Identification (MIID) | LNAT 150608-N-MM-PM |
| Peripheral Effective Cutting Edge Count (ZEFP) | 7 | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | |
| Cutting Depth Maximum (CDX) | 53 mm | Arbor Style | C |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 92 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 25.6 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 18.9 mm | Unit | M |
| Flute Count (NOF) | 14 |
Product Features

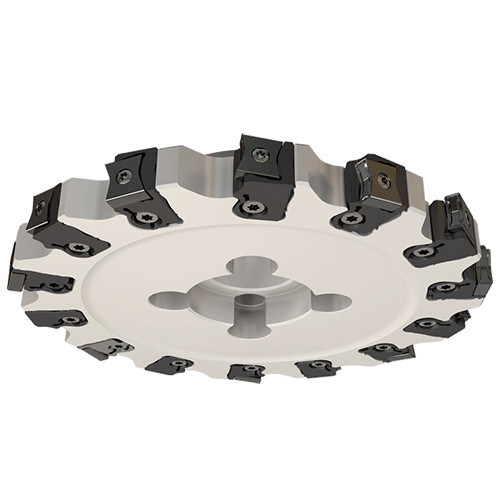

| Family Description | Full slot adjustable slotting cutters with cartridges using LNAT 1506...-PM inserts, 18.9-25.6 mm width range. Each cutter body can be changed into full slot, bottom or top milling configuration, by mounting the cartridges accordingly. | FamilyName | FDN-CAPM15 |

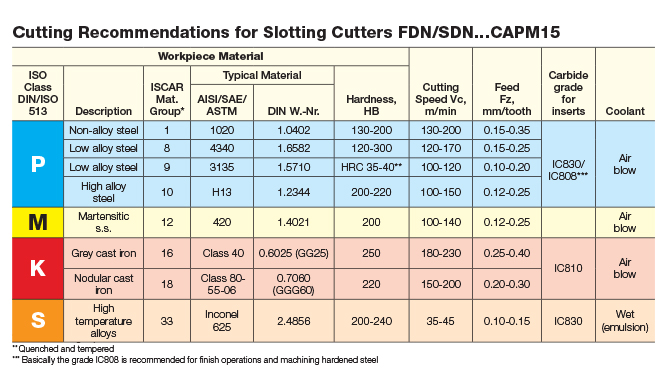

| Remarks | Use A type cartridges for inserts with 0.8-1.6 mm radii, B type cartridges for inserts with 2.5-3.2 mm radii and C type cartridges for inserts with 4.0 mm radius For cutting recommendations, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
4.1890
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
FDN-CAPM15
BrandName
Iscar
LocalField3
8466100130
Related Documentation
Half of the inserts are used on right-hand cartirdges and half on left-hand cartirdges.
