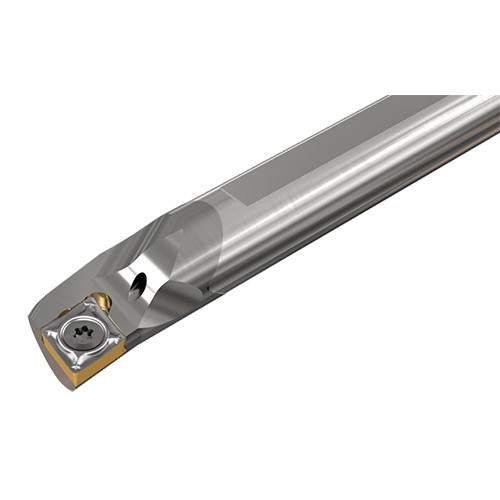

A07G SCLCR-04

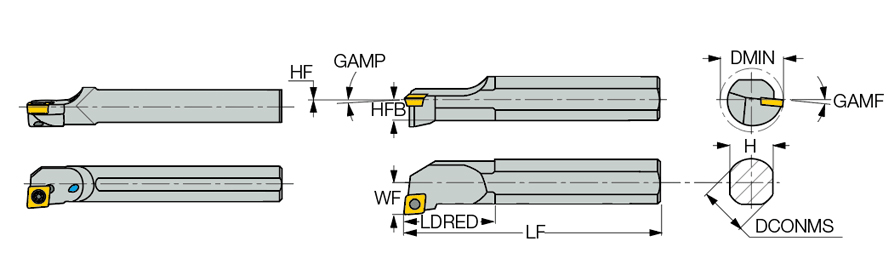

| Connection Diameter Machine Side (DCONMS) | 7 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 90 mm | Application | | Int. 80° Diamond 95° Approach | |
| Overall Length (OAL) | 90 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Reduced Body Diameter Length (LDRED) | 12 mm | Rake Angle Radial (GAMF) | -11 Degrees |
| Shank Height (H) | 6.8 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 4 mm | Body Material | Steel |
| Master Insert Identification (MIID) | CCGT 04T102-F1P | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 8 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw lock boring bars carrying 80° rhombic inserts with 7° clearance for 20 mm minimum bore diameter. | FamilyName | A/E/S-SCLCR/L |
| Remarks | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0410
Name
Indexable Internal Turning Tools
FamilyName
A/E/S-SCLCR/L
BrandName
Iscar
