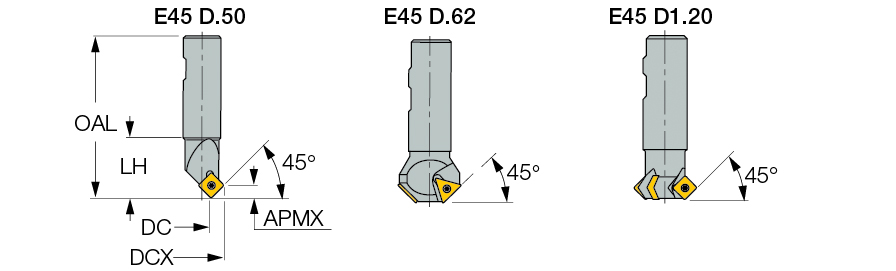

| Cutting Diameter (DC/DCX) | 1.2″ | Functional Length (LF) | 2.609″ |
| Cutting Diameter (DC) | 1.2″ | Tool Type | Chamfering endmills |
| Cutting Item Count (CICT) | 3 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 0.31″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Overall Length (OAL) | 3-3/4″ | Cutting Direction (HAND) | Right Hand |

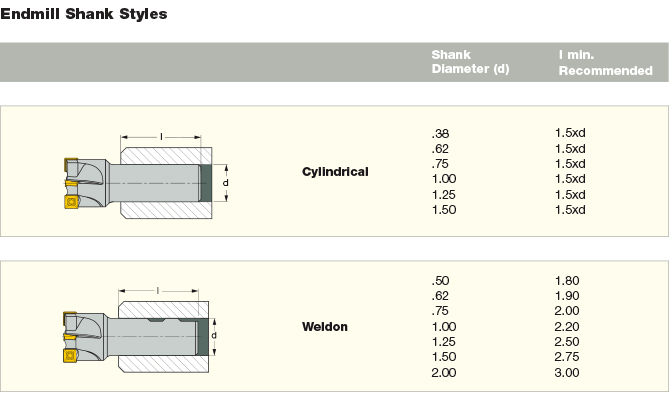

| Shank Type | Weldon | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Body Material | Steel |
| Application | | Chamfering & Bottom Deburring | Countersinking | Slanted Shoulder & Chamfer | | Connection Code Machine Side (CCMS) | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 1.815″ |
| Master Insert Identification (MIID) | SCMT 432 | Unit | I |
| Head Length (LH) | 0.118″ |
Product Features

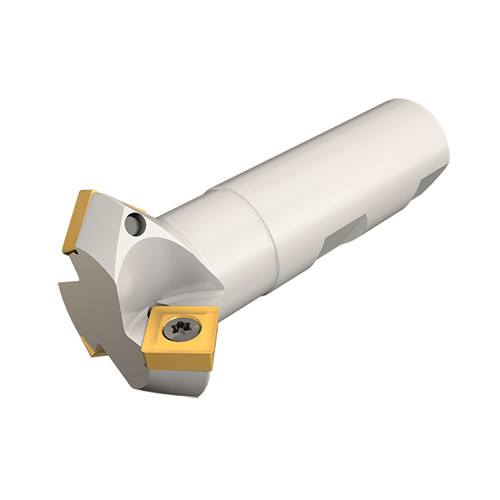

| Family Description | 45° chamfering endmills. | FamilyName | E45 |
| Remarks | For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.0207
Name
Indexable End Mills
FamilyName
E45
BrandName
Iscar
