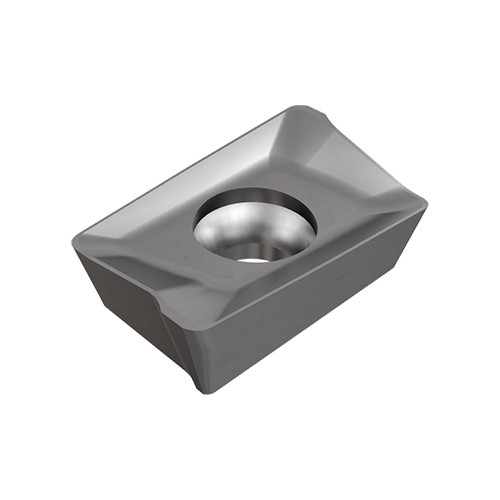

APKT 1003PDTR-8M IC250
HELIMILL insert with reinforced helical cutting edges for interrupted cut and heavy milling. Excellent for reducing chatter on long overhang and extended flute cutters.
| Applicable Material | | Steel | Stainless Steel | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Cutting Edge Material | Carbide |

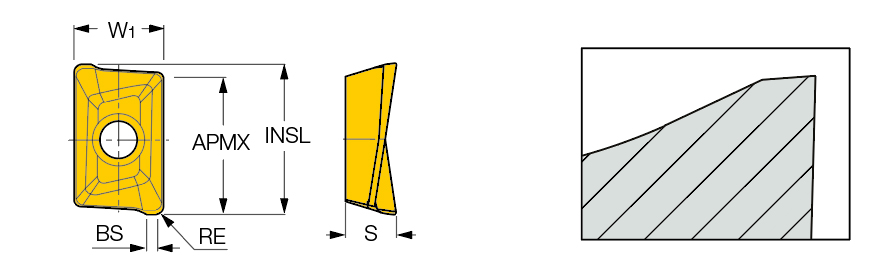

| Insert Length (INSL) | 10.95 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.5 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 9.8 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 6.7 mm | Cutting Edge Effective Length (LE) | 10.05 mm |
| Insert Thickness (S) | 3.55 mm | Measurement Type | Metric |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC250 | Unit | M |
Product Features
| Family Description | HELIMILL insert with reinforced helical cutting edges for interrupted cut and heavy milling. Excellent for reducing chatter on long overhang and extended flute cutters. | FamilyName | APKT 1003PDTR-8M |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0030
Name
Milling Indexable Inserts
FamilyName
APKT 1003PDTR-8M
BrandName
Iscar
