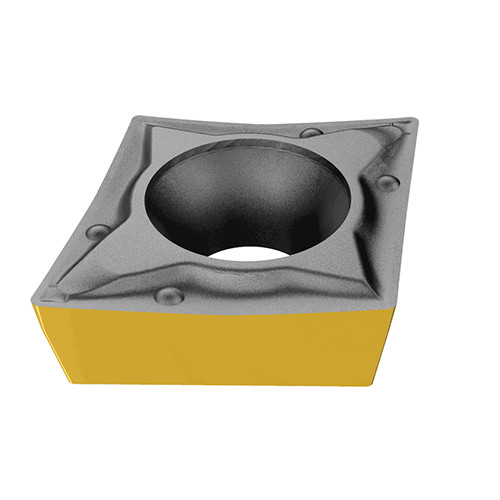

CCMT 060204-PF IC907
80° rhombic 7° positive flank inserts. Used for semi-finishing and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 2.8 mm |
| Application | | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Tool Type | Turn Positive Inserts |
| Insert Style | CCMT | Min D.O.C. | 0.4 mm |

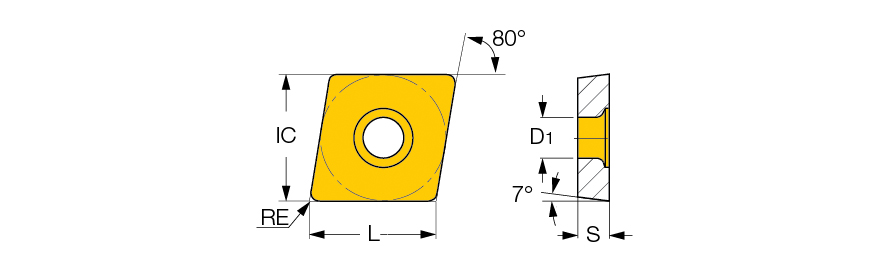

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| Insert Size | 2-1-PF | Min. Turning Feed (ft(min)) | 0.04 mm/rev |
| Cutting Edge Length (L) | 6.45 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | PF |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC907 | Unit | M |
Product Features
| Family Description | 80° rhombic 7° positive flank inserts. Used for semi-finishing and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces. | FamilyName | CCMT-PF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0023
Name
Turning Indexable Inserts
FamilyName
CCMT-PF
BrandName
Iscar
