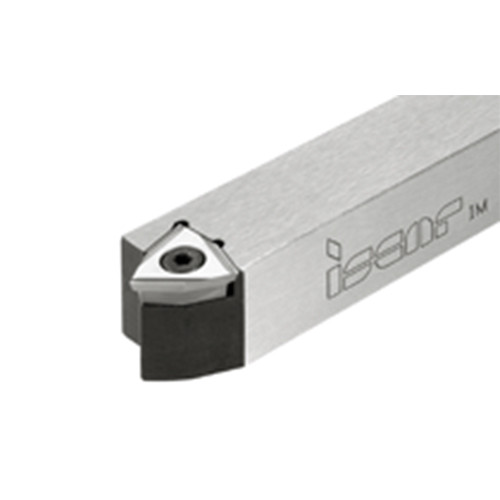

SWDPL 1212-05

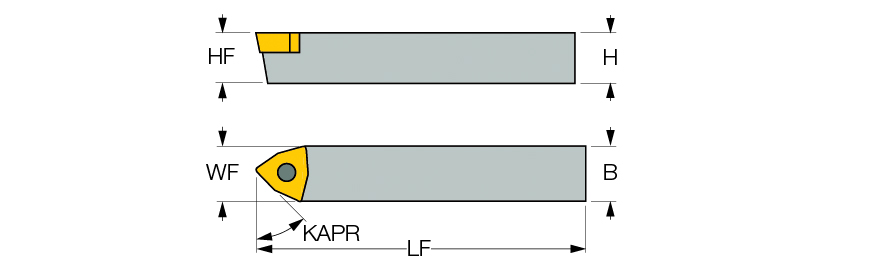

| Shank Height (H) | 12 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 12 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Functional Width (WF) | 12.1 mm | End Chamfer Angle (ECA) | 55 Degrees |
| Inscribed Circle Diameter (IC) | 7.94 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | WPEB/X 05.. | Unit | M |
| Application | | Ext. Positive Trigon 45°Approa | |
Product Features
| Family Description | 45° entering angle screw lock tools carrying trigon inserts for Swiss automatic machines | FamilyName | SWDPR/L |
| Remarks | For R.H. tool use -R screw, for L.H. tool use -L screw | BrandName | Iscar |
| COO | Switzerland |
Shipping Info
Weight per item
0.1800
Name
General Indexable Turning Tools
FamilyName
SWDPR/L
BrandName
Iscar
