C6 MAHD-JHP

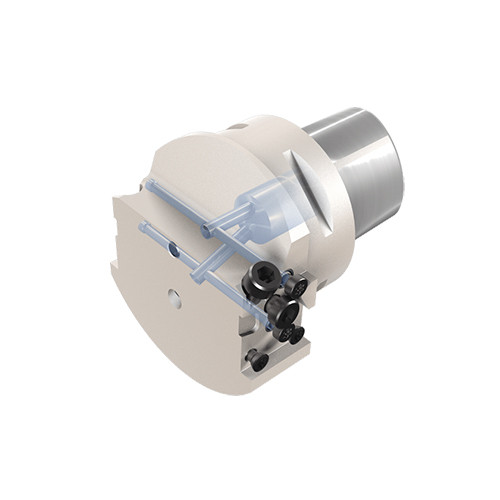

Holders with CAMFIX (ISO 26623-1 standard) tapered shanks and high pressure coolant channels for MODULAR GRIP adapters.

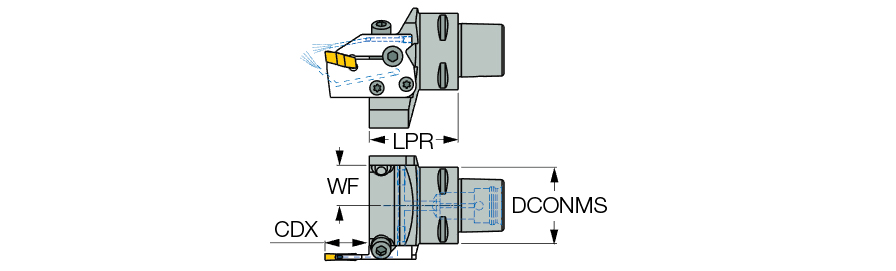

| Protruding Length (LPR) | 50 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Functional Width (WF) | 32.5 mm | Overall Length (OAL) | 88 mm |
| Shank Size (SS) | 63 | Unit | M |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
Product Features
| Family Description | Holders with CAMFIX (ISO 26623-1 standard) tapered shanks and high pressure coolant channels for MODULAR GRIP adapters. | FamilyName | C#-MAHD-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.7160
Name
Adapters
FamilyName
C#-MAHD-JHP
BrandName
Iscar
