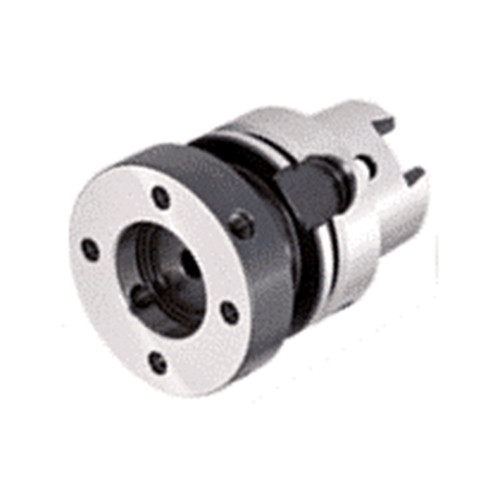

ADJ HSK A63 D70
Center alignment shank and base with a DIN69893 form A HSK tapered shank for specially tailored tool holders.
| Protruding Length (LPR) | 60 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 35 mm | Body Diameter_2 (BD_2) | 46 mm |
| Body Diameter (BD) | 70 mm | Overall Length (OAL) | 92 mm |
| Body Length (LB) | 34 mm | Connection Code Machine Side (CCMS) | HSK |
| Shank Size (SS) | 63 | Unit | M |
| Tool Type | HSK |
Product Features
| Family Description | Center alignment shank and base with a DIN69893 form A HSK tapered shank for specially tailored tool holders. | FamilyName | ADJ HSK A |

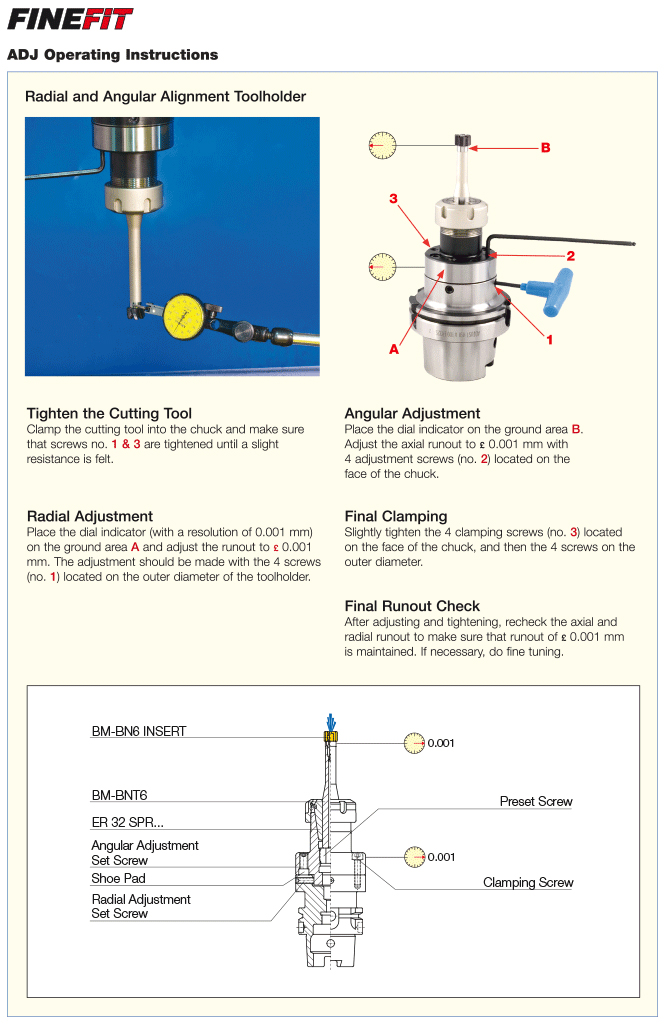

| Remarks | (1) Use 4 mm hex key for screw adjustment. A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) For shank dimensions, Click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.4140
Name
Adapters
FamilyName
ADJ HSK A
BrandName
Iscar
