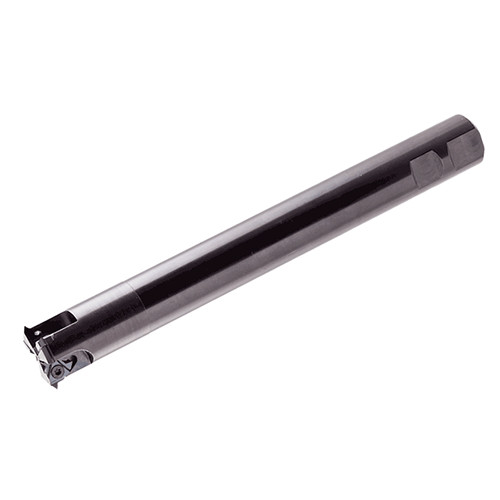

MTSR 0023 Q11
Indexable multi-insert threading endmills with Weldon shanks for single point inserts.

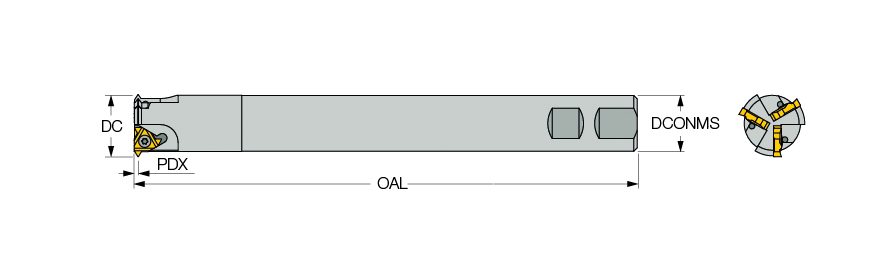

| Cutting Diameter (DC) | 23.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Overall Length (OAL) | 190 mm | Tool Type | Indexable thread mills |
| Flute Count (NOF) | 3 | Measurement Type | Metric |

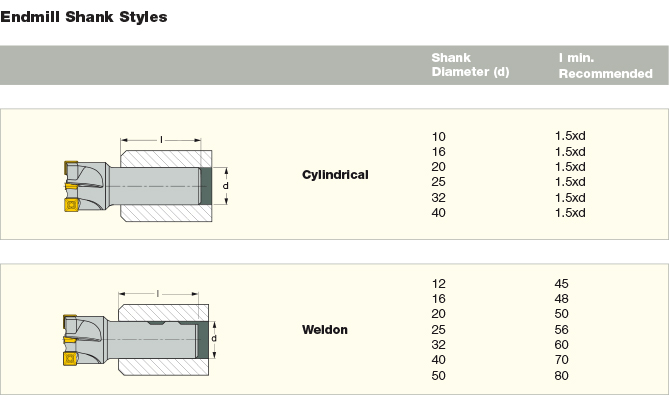

| Shank Type | Weldon | Thread Type (TTP_DF2) | INT |
| Body Material | Steel | Unit | M |
Product Features
| Family Description | Indexable multi-insert threading endmills with Weldon shanks for single point inserts. | COO | Israel |
| Remarks | Minimum bore should be one-third larger than D |
Shipping Info
Weight per item
0.4250
