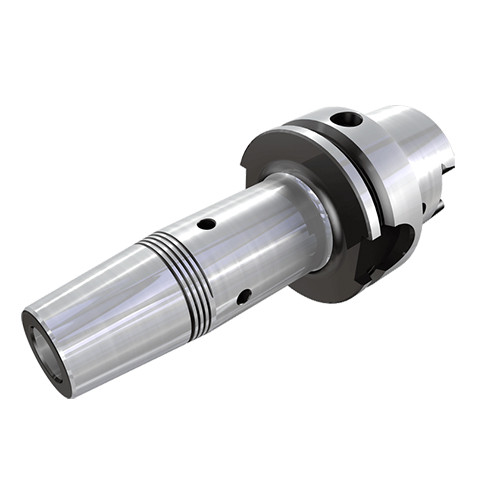

HSK A63 SRKIN18X160
Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide, HSS and steel tools.

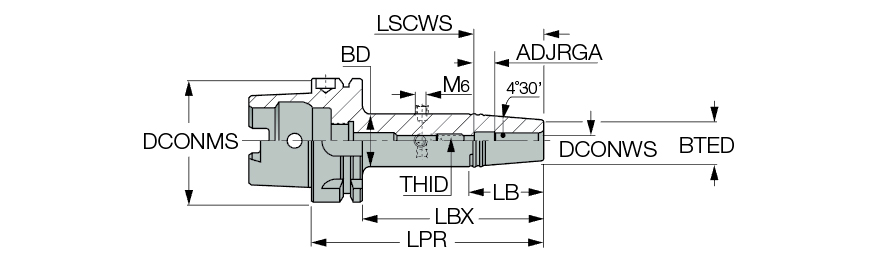

| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Length Maximum (LBX) | 134 mm |
| Connection Diameter Workpiece Side (DCONWS) | 18 mm | Overall Length (OAL) | 192 mm |
| Shank Size (SS) | 63 | Measurement Type | Metric |
| Body Length (LB) | 57 mm | Tool Type | HSK |
| Body Diameter (BD) | 33 mm | Body Material | Steel |
| Body Diameter_2 (BD_2) | 42 mm | Connection Code Machine Side (CCMS) | HSK |
| Protruding Length (LPR) | 160 mm | Unit | M |
Product Features
| Family Description | Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide, HSS and steel tools. | FamilyName | HSK A-SRKIN |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) Use only inductive heating device for SRKIN holders For solid carbide, HSS and steel tools. For shank dimensions and shrink units information, Click on More Info ISCAR cannot guarantee an unbalance value less than 1 gr x mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.8890
Name
Shrink Fit Holders
FamilyName
HSK A-SRKIN
BrandName
Iscar
