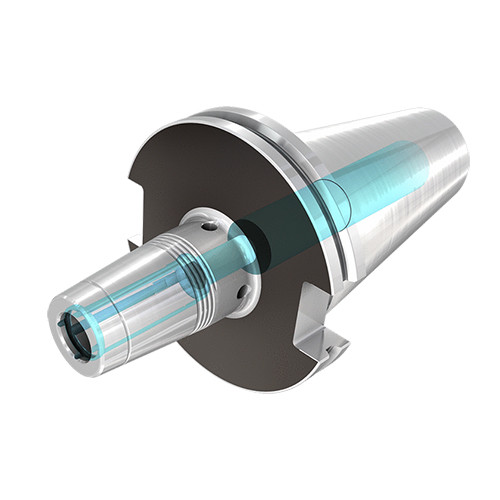

DIN69871 40 SRKIN 12X80CX
Thermal shrink chucks with DIN69871 Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance .

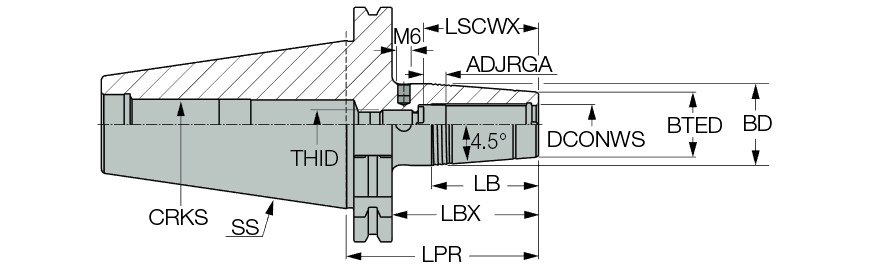

| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Body Length Maximum (LBX) | 60.9 mm |
| Shank Size (SS) | 40 | Clamping Length Workpiece Side (LSCWS) | 44.8 mm |
| Body Length (LB) | 51 mm | Measurement Type | Metric |
| Body Diameter (BD) | 32 mm | Tool Type | DIN 69871 |
| Body Taper End Diameter (BTED) | 24 mm | Body Material | Steel |
| Protruding Length (LPR) | 80 mm | Unit | M |
Product Features
| Family Description | Thermal shrink chucks with DIN69871 Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance . | FamilyName | DIN69871-SRKIN-CX |
| Remarks | Use only inductive heating device for SRKIN holders ISCAR cannot guarantee an unbalance value less than 1 gr x mm For shrink units information, Click on More Info Preset screw CX allows supply of coolant via JET channels - do not remove | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.1260
Name
Shrink Fit Holders
FamilyName
DIN69871-SRKIN-CX
BrandName
Iscar
