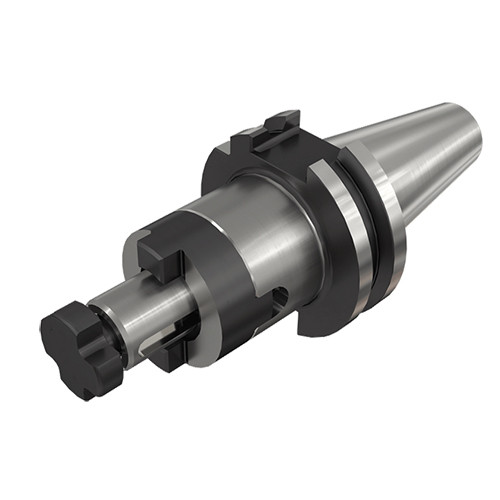

DIN69871 40 SEMC 32X 60
DIN 6358 COMBI shell mill holders with DIN 69871 form AD taper shanks.

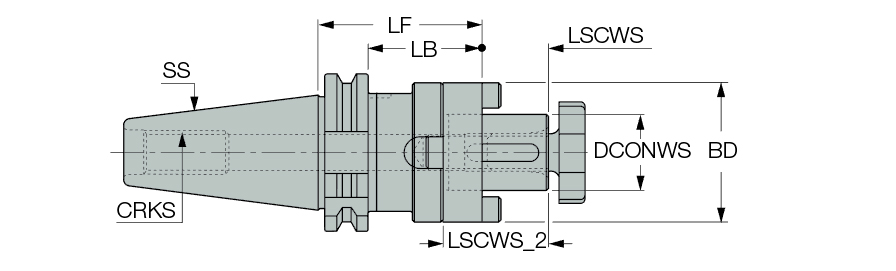

| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Tool Type | DIN 69871 |
| Shank Size (SS) | 40 | Measurement Type | Metric |
| Functional Length (LF) | 60 mm | Body Material | Steel |
| Body Diameter (BD) | 58 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Clamping Length Workpiece Side (LSCWS) | 24 mm | Unit | M |
Product Features
| Family Description | DIN 6358 COMBI shell mill holders with DIN 69871 form AD taper shanks. | FamilyName | DIN69871-SEMC |
| Remarks | For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
1.7390
Name
Shell Mill Holders
FamilyName
DIN69871-SEMC
BrandName
Iscar
