HSK A100 SEM22X100C

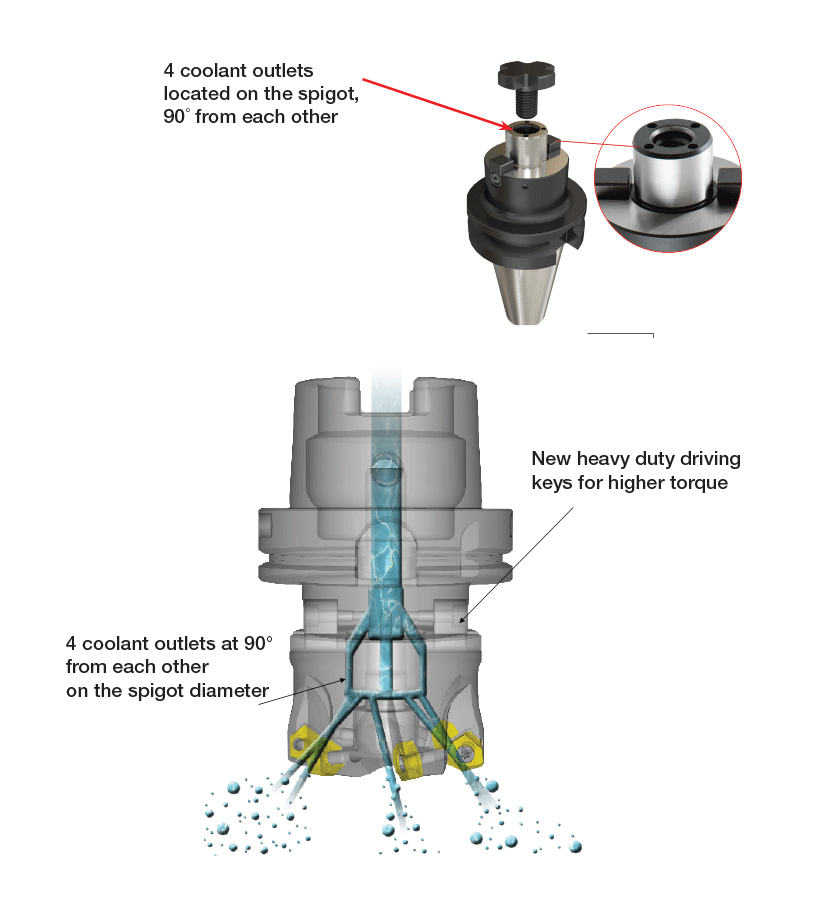

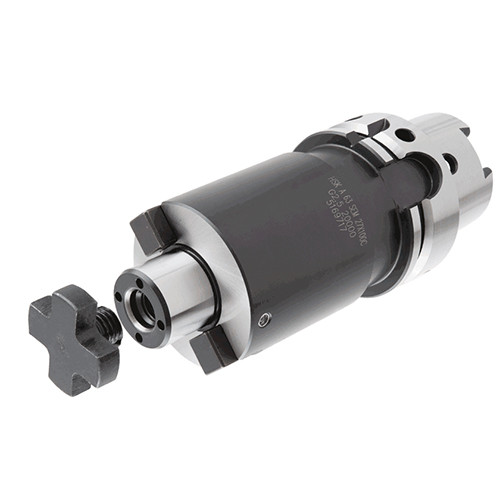

Shell mill holders with coolant holes and DIN69893 form A HSK tapered shanks. Symmetrical design, dynamically balanced for high RPM machining.

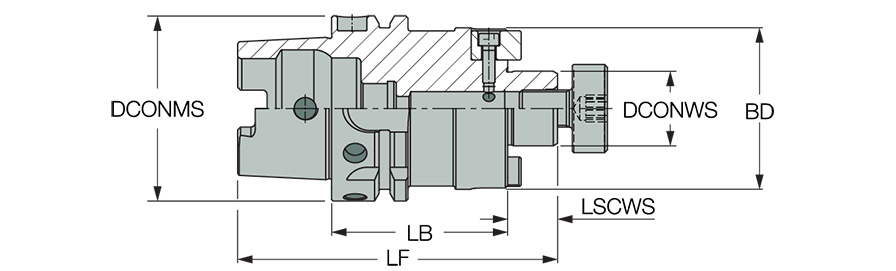

| Connection Diameter Machine Side (DCONMS) | 100 mm | Clamping Length Workpiece Side (LSCWS) | 19 mm |
| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Tool Type | HSK |
| Shank Size (SS) | 100 | Measurement Type | Metric |
| Functional Length (LF) | 100 mm | Body Material | Steel |
| Body Diameter (BD) | 47 mm | Connection Code Machine Side (CCMS) | HSK |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | Shell mill holders with coolant holes and DIN69893 form A HSK tapered shanks. Symmetrical design, dynamically balanced for high RPM machining. | FamilyName | HSK A-SEM-C |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
3.1830
Name
Shell Mill Holders
FamilyName
HSK A-SEM-C
BrandName
Iscar
