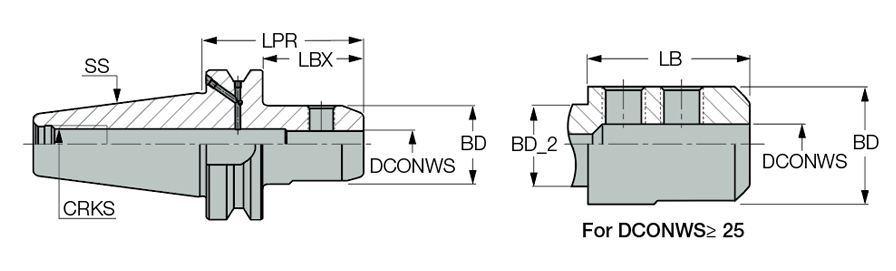

| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Tool Type | BT |
| Body Diameter (BD) | 52 mm | Body Material | Steel |
| Protruding Length (LPR) | 120 mm | Connection Code Machine Side (CCMS) | BT |
| Measurement Type | Metric | Unit | M |
| Shank Size (SS) | 40 |
Product Features

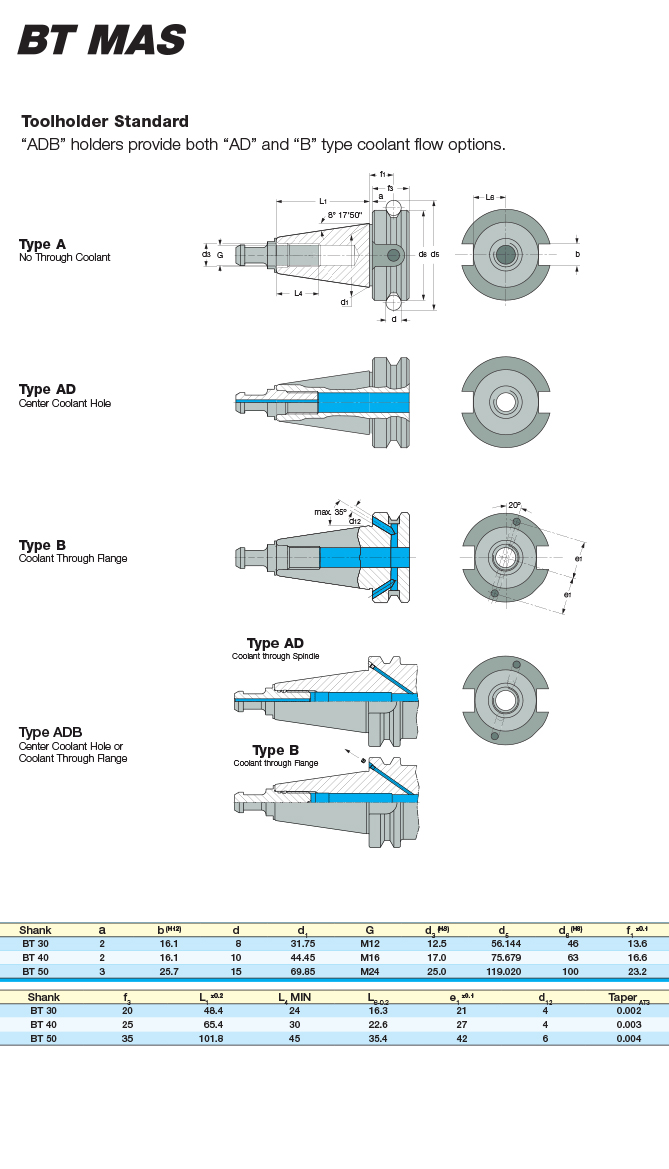

| Family Description | DIN6359 / DIN 1835 form B Weldon endmill holders with BT MAS-403 ADB tapered shanks | FamilyName | BT-EM (DIN 1835 Form B) |
| COO | Turkey | BrandName | Iscar |
Shipping Info
Weight per item
2.2710
Name

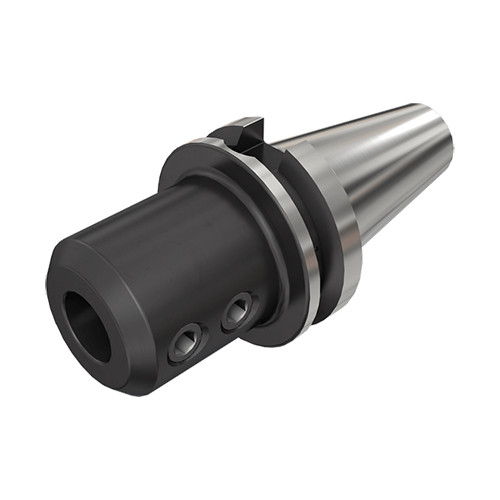

End Mill Holders
FamilyName
BT-EM (DIN 1835 Form B)
BrandName
Iscar
