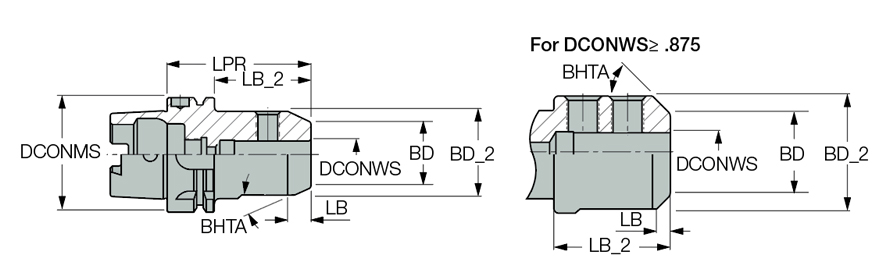

| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Tool Type | HSK |
| Body Diameter (BD) | 1.181″ | Body Length (LB) | 0.285″ |
| Protruding Length (LPR) | 3-1/8″ | Body Material | Steel |
| Overall Length (OAL) | 4.109″ | Connection Code Machine Side (CCMS) | HSK |
| Measurement Type | Inch | Unit | I |
| Shank Size (SS) | 50 |
Product Features

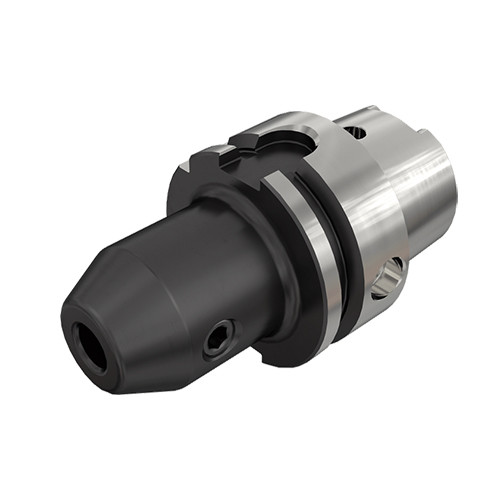

| Family Description | DIN6359 side clamp holders for Weldon shanks with HSK DIN69893 form A tapered shanks. | FamilyName | HSK A-EM (Weldon) |

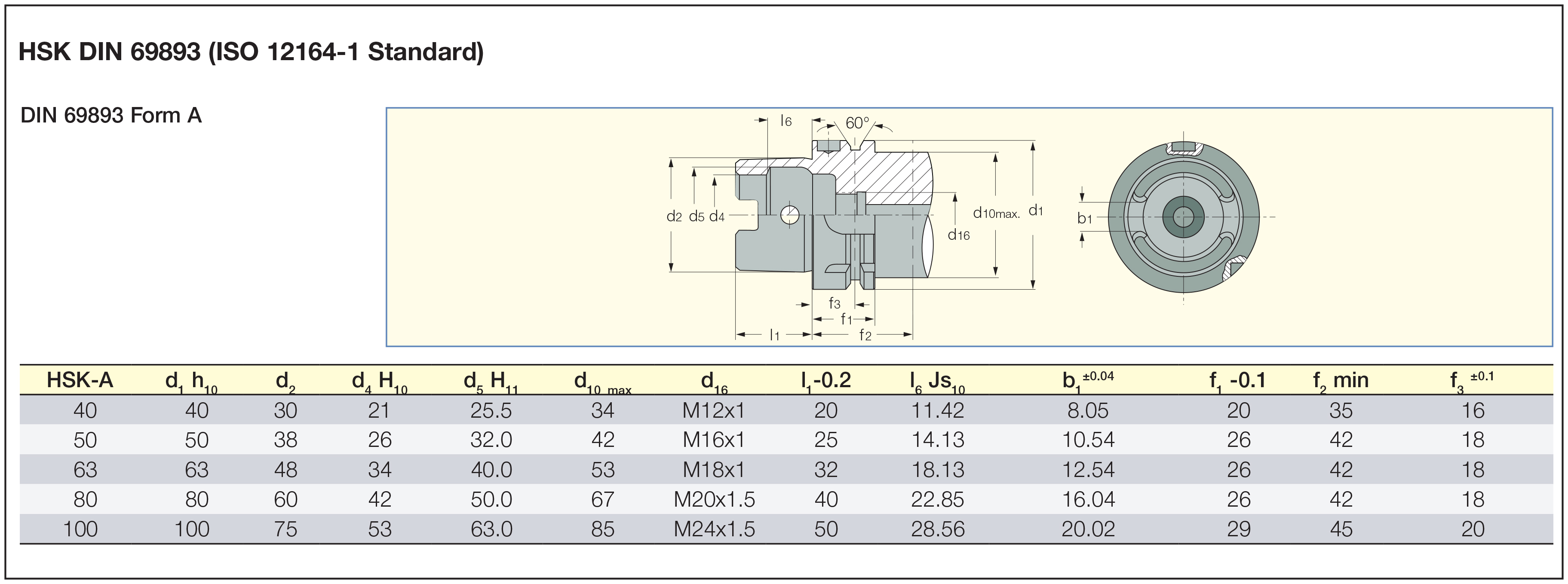

| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, see More info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.9974
Name
End Mill Holders
FamilyName
HSK A-EM (Weldon)
BrandName
Iscar
