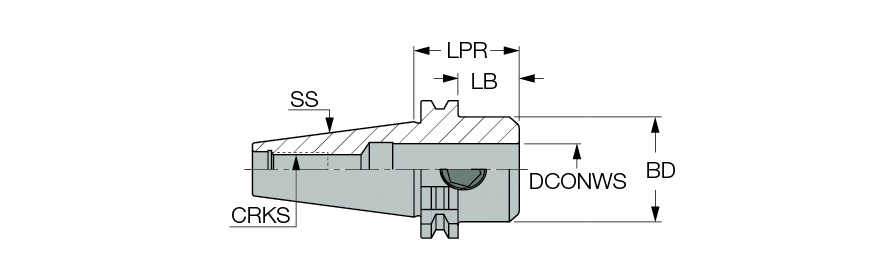

| Connection Diameter Workpiece Side (DCONWS) | 14 mm | Shank Size (SS) | 40 |
| Body Diameter (BD) | 44 mm | Tool Type | DIN 69871 |
| Protruding Length (LPR) | 45 mm | Body Material | Steel |
| Overall Length (OAL) | 113.4 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Measurement Type | Metric | Unit | M |
Product Features
| Family Description | Short side clamp endmill holders (DIN 6359-HB) with DIN 69871 form AD taper shanks for DIN 1835 form B weldon shanks | FamilyName | DIN69871-EM (DIN 6359 short) |
| COO | Italy | BrandName | Iscar |
Shipping Info
Weight per item
1.0740
Name

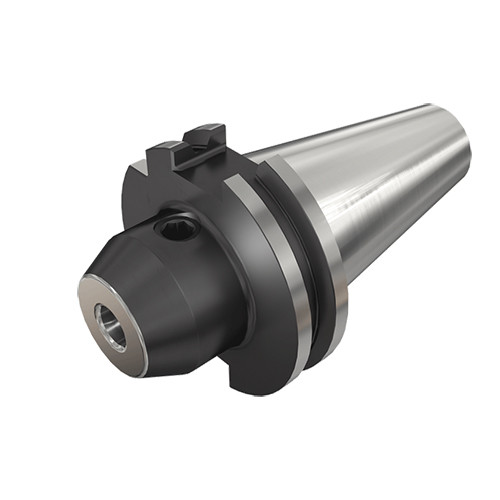

End Mill Holders
FamilyName
DIN69871-EM (DIN 6359 short)
BrandName
Iscar
