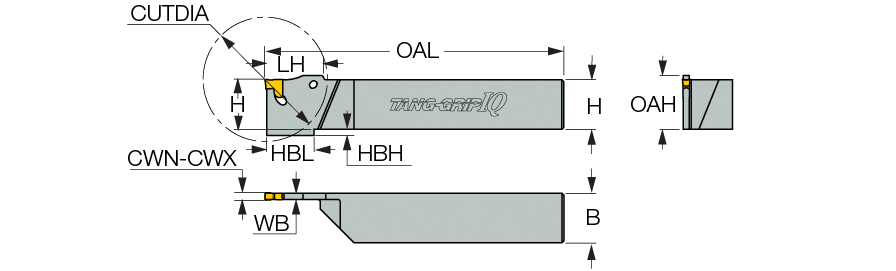

| Shank Height (H) | 12 mm | Body Material | Steel |
| Shank Width (B) | 12 mm | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 2.5 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 32 mm |
| Cutting Width Minimum (CWN) | 2.8 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 3.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Head Bottom Offset Height (HBH) | 7 mm |
| Overall Height (OAH) | 19 mm | Tool Assembly Length (LTA) | 33.85 mm |
| Application | | Ext. Grooving | Parting | | Unit | M |
Product Features
| Family Description | Integral shank tools with a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life. | FamilyName | TGTR/L-IQ-ISC2301910 -M |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.397
Name
Parting Off Indexable Holders
FamilyName
TGTR/L-IQ-ISC2301910 -M
BrandName
Iscar
