TGTBU 25-6G-JHP
Tool blocks for parting and grooving blades for high-pressure coolant

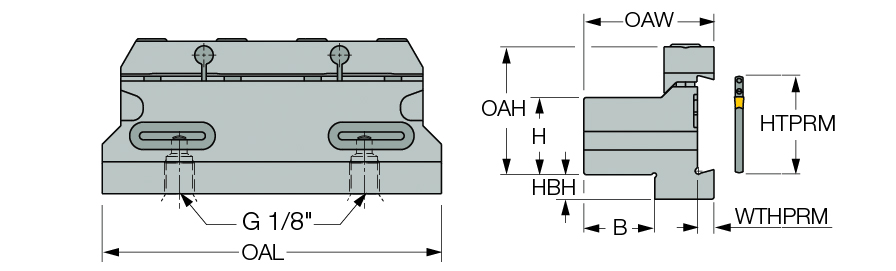

| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 23 mm | Tool Type | Blocks for blades |
| Overall Length (OAL) | 110 mm | Measurement Type | Metric |
| Overall Height (OAH) | 41.4 mm | Tool Assembly Length (LTA) | 10.9 mm |
| Prism Height (HTPRM) | 32 mm | Unit | M |
Product Features
| Family Description | Tool blocks for parting and grooving blades for high-pressure coolant | FamilyName | TGTBU-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.0880
Name
Parting Off Indexable Holders
FamilyName
TGTBU-JHP
BrandName
Iscar
