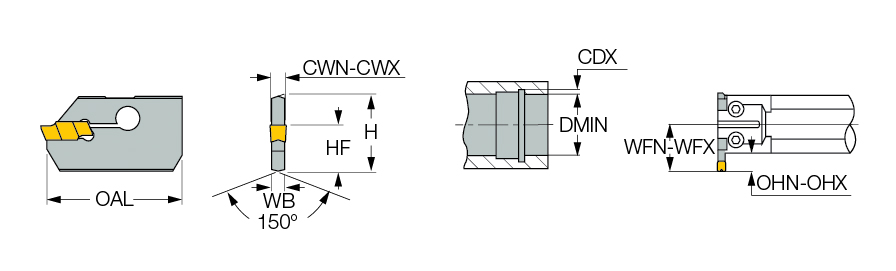

CGIN 26K-3
| Cutting Width Minimum (CWN) | 2.8 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | Threading (Int.) | |
| Cutting Width Maximum (CWX) | 4 mm | Body Material | Steel |
| Shank Height (H) | 26 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Body Width (WB) | 2.4 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 50 mm | Unit | M |
Product Features
| Family Description | Internal, single-ended blades, for grooving and turning. | FamilyName | CGIN 26 |

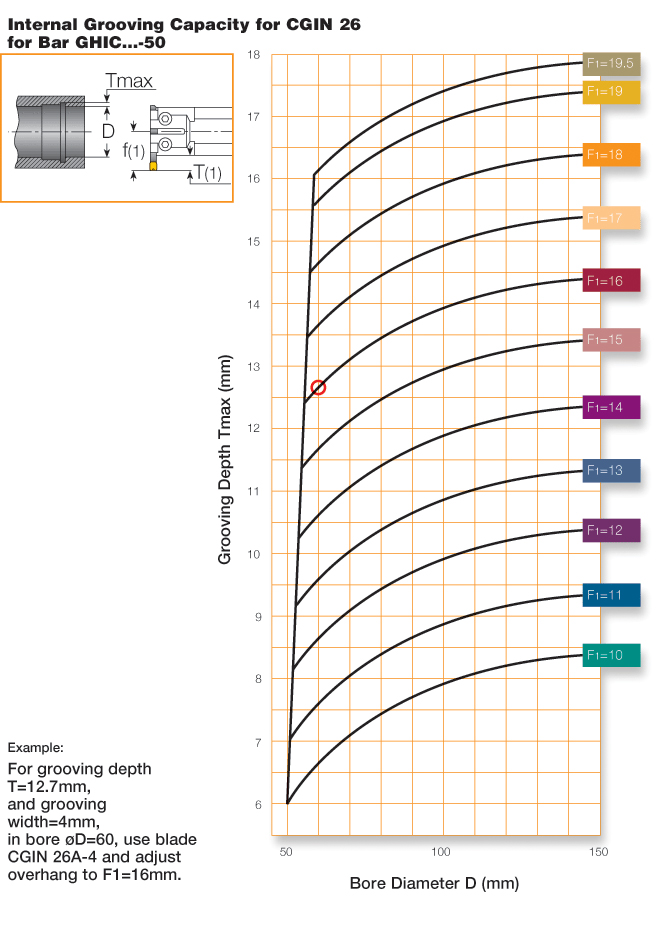

| Remarks | WFN-WFX and OHN-OHX are the blade's extension range Grooving depth (CDX) varies in conformance with blade's overhang (OHN-OHX) and depends on the bore diameter(D).For grooving capacity, see chart below When using TIPI inserts toolholder seat needs to be modified according to insert profile to ensure clearance | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0230
Name
Groove/Turn Indexable Holders
FamilyName
CGIN 26
BrandName
Iscar
