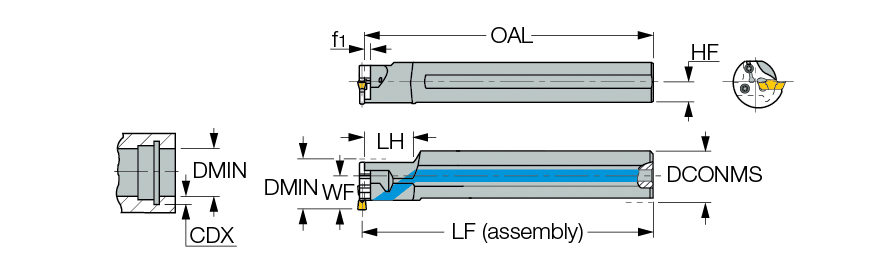

| Minimum Bore Diameter (DMIN) | 1.26″ | Body Material | Steel |
| Functional Width (WF) | 0.12″ | Tool Type | Round Shanks |
| Head Length (LH) | 1-1/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 8″ | Unit | I |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
Product Features

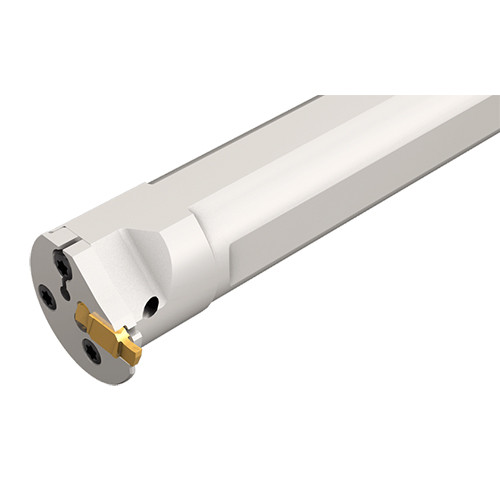

| Family Description | Boring bars, for GAIR/L adapters. Used for internal grooving, turning and threading applications. | FamilyName | GHAIR/L-GI |
| Remarks | For DMIN & CDX refer to GAIR/L adapters | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.3788
Name
Groove/Turn Indexable Holders
FamilyName
GHAIR/L-GI
BrandName
Iscar
