MM GRIT 28K-45D-6T10 IC908
Interchangeable solid carbide dovetail groove milling heads.
| Application | | Chamfering & Bottom Deburring | Side Slotting | | Coating | TiAlN |

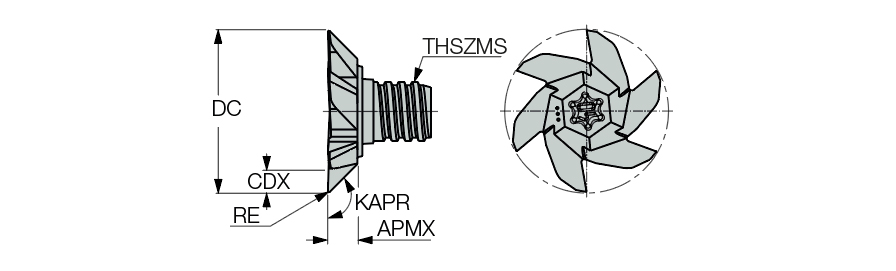

| Cutting Diameter (DC) | 27.7 mm | Tool Cutting Edge Angle (KAPR) | 135 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.2 mm | Tool Type | Solid chamfering endmills |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Body Material | Carbide |
| Cutting Depth Maximum (CDX) | 4 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Cutting Width (CW) | 4.2 mm | Unit | M |
| Grade | IC908 |
Product Features
| Family Description | Interchangeable solid carbide dovetail groove milling heads. | FamilyName | MM Dovetail |
| Remarks | Use carbide shanks for groove milling heads | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0515
Name
Solid End Mill Heads
FamilyName
MM Dovetail
BrandName
Iscar
