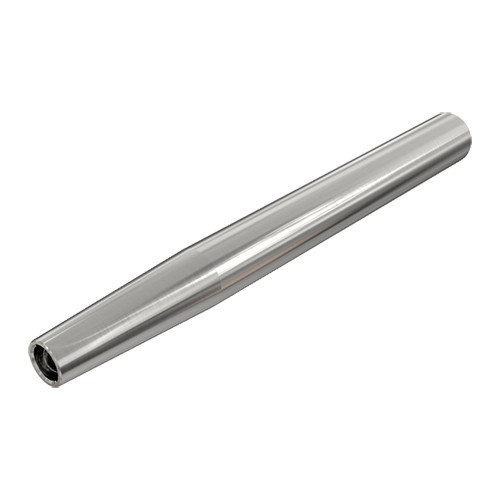

MM S-B-L085/32-C16T05
MULTI-MASTER, 85° conical shanks for interchangeable milling heads.

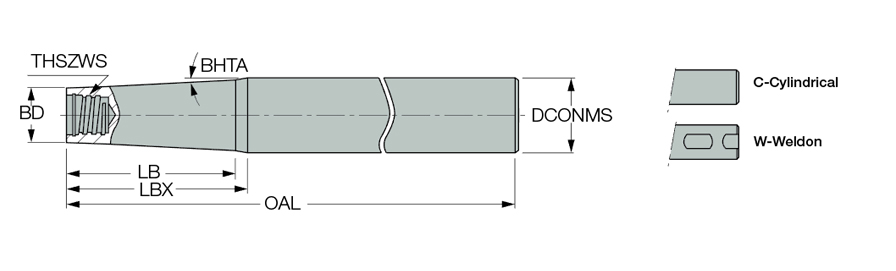

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T05 | Functional Length (LF) | 85 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Overall Length (OAL) | 85 mm | Rotational Speed Maximum (RPMX) | 41280 Rev/min |
| Body Length Maximum (LBX) | 32 mm | Body Material | Steel |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 7.6 mm | Unit | M |
| Body Length (LB) | 27 mm |
Product Features
| Family Description | MULTI-MASTER, 85° conical shanks for interchangeable milling heads. | FamilyName | MM S-B (85° conical shanks) |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1150
Name
Solid End Mill Shanks
FamilyName
MM S-B (85° conical shanks)
BrandName
Iscar
