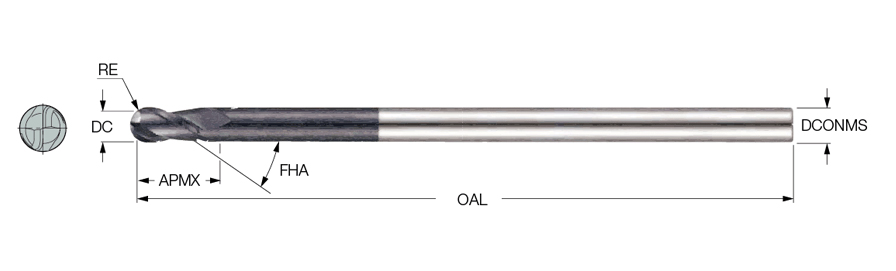

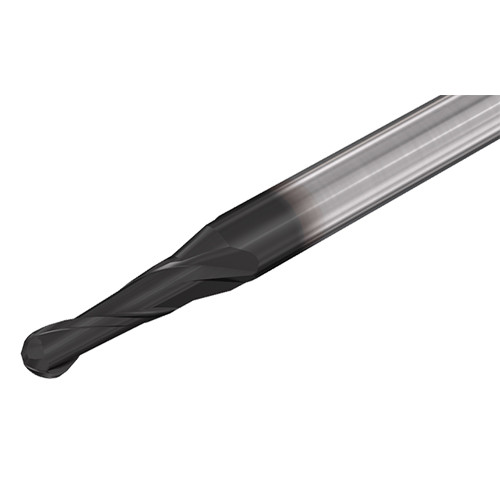

EB-A2 12-22C12M200 IC903
| Cutting Diameter (DC) | 12 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Corner Radius (RE) | 6 mm |
| Depth of Cut Maximum (APMX) | 22 mm | Grade | IC903 |
| Overall Length (OAL) | 200 mm | Tool Type | Solid ball nose |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | 2 flute, 30° helix extra long solid carbide ball nose endmills for materials up to 65 HRC. | FamilyName | EB-A2 (extra long)-ISC5650029 -M |
| Remarks | The DC tolerance is: 0 - -0.030 mm | BrandName | Iscar |
| COO | China |
Shipping Info
Weight per item
0.705
Name
Ballnose End Mills
FamilyName
EB-A2 (extra long)-ISC5650029 -M
BrandName
Iscar
