DCN 0669-535-075R-8D

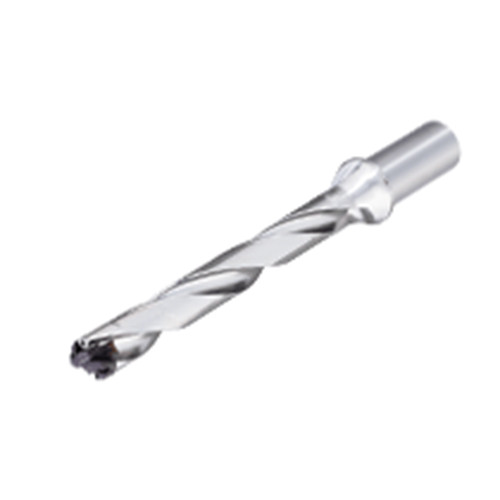

SUMOCHAM 8xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
| Cutting Diameter (DC) | 0.669″ | Shank Length (LS) | 1.97″ |
| Usable Length (LU) | 5.456″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 170 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.102″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Body Material | Steel |
| Insert Seat Size Code (SSC) | 17.0 | Flange Diameter (DF) | 0.98″ |
| Cutting Diameter Minimum (DCN) | 0.669″ | Decimal Equivalent | 0.669″ |
| Cutting Diameter Maximum (DCX) | 0.708″ | Body Diameter Reduced (BDRED) | 0.98″ |
| Protruding Length (LPR) | 6.41″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 6.288″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 8.38″ | Unit | I |
Product Features
| Family Description | SUMOCHAM 8xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | COO | Israel |
| Remarks | Prior to using the 8xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. Not required if HCP or QCP drilling head is used Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.7121
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
