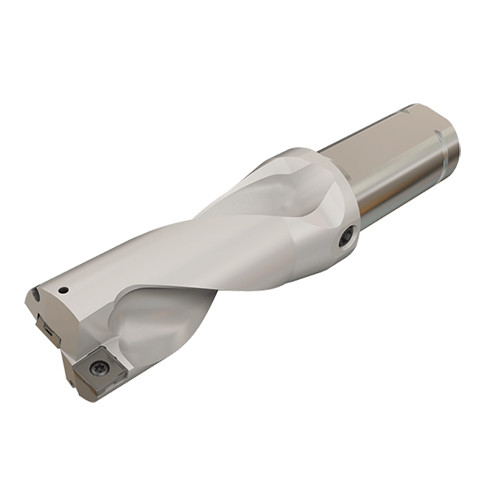

DR1750-3500-150-12-2D-N
DR-TWIST indexable square insert drills with coolant holes. Drilling depth 2xD.

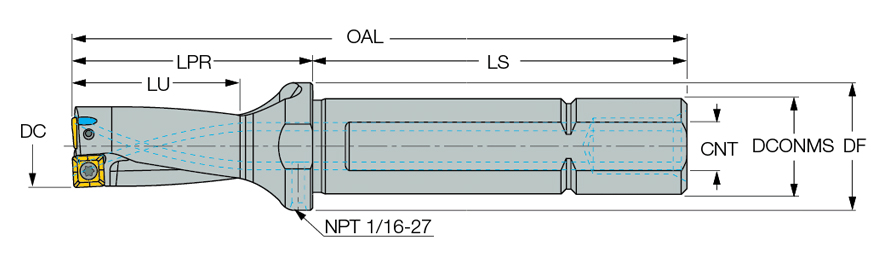

| Cutting Diameter (DC) | 1-3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 3-1/2″ | Cutting Diameter Maximum (DCX) | 1.77″ |
| Application | | Drilling | | Flange Diameter (DF) | 1.97″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMT 12 |
| Protruding Length (LPR) | 4.95″ | Body Material | Steel |
| Shank Length (LS) | 3″ | Decimal Equivalent | 1.75″ |
| Functional Length (LF) | 4.897″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 7.95″ | Unit | I |
Product Features
| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 2xD. | COO | Israel |
| Remarks | Hole tolerance D+.006/-.002 in average conditions applied. It can be higher or lower according to machine and tooling conditions For eccenter sleeves, see pages.. |
Shipping Info
Weight per item
3.6068
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
