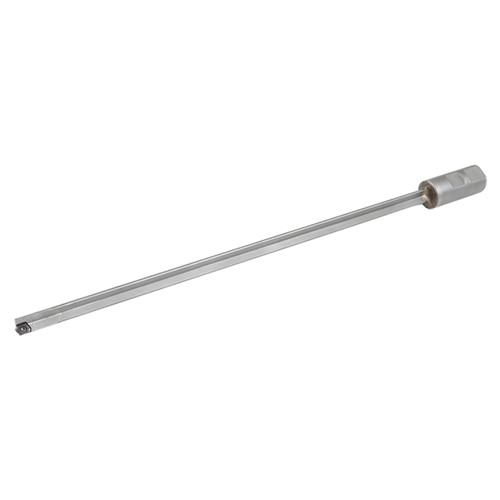

GD-DH 13.50-25D-M25-06
Gundrills carrying the LOGT indexable inserts, with 2 chip splitting cutting edges and a wiper for high hole surface quality. The drills are available in 15, 20 and 25 drilling length to diameter ratios.

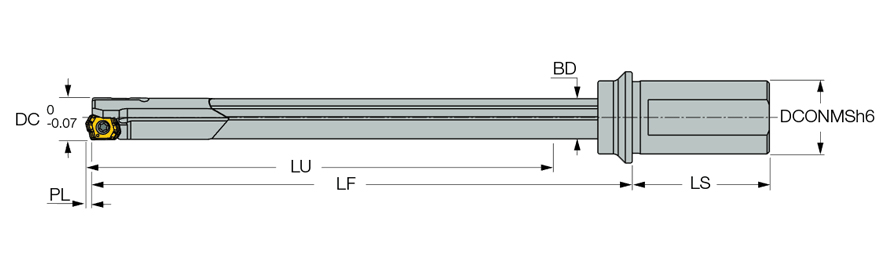

| Cutting Diameter (DC) | 13.5 mm | Functional Length (LF) | 385 mm |
| Usable Length (LU) | 351.8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Gundrills | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Master Insert Identification (MIID) | LOGT 06.. |
| Tool Type | Deep Hole / Gun Drill | Body Material | Steel |
| Shank Length (LS) | 56 mm | Unit | M |
Product Features
| Family Description | Gundrills carrying the LOGT indexable inserts, with 2 chip splitting cutting edges and a wiper for high hole surface quality. The drills are available in 15, 20 and 25 drilling length to diameter ratios. | COO | Japan |
| Remarks | For inquiry form, pad and driver selection, click on More Info Note: Gundrills can be supplied with up to 2400 mm length on request. Inserts and guide pads to be ordered separately (not included with the tools). Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole. Enter the guide hole slowly at a speed of 50 - 100 rpm. |
Shipping Info
Weight per item
0.5310
