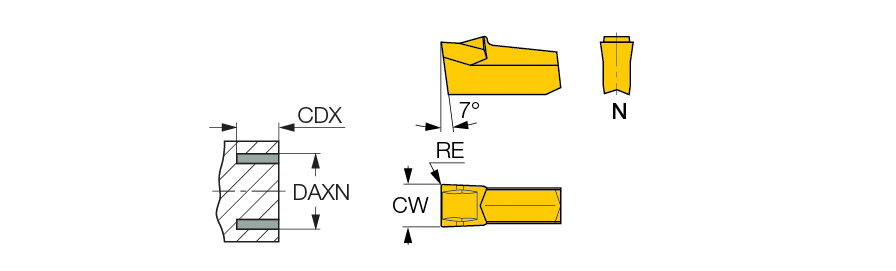

| Cutting Width (CW) | 6 mm | Axial Groove Outside Diameter Minimum (DAXN) | 44 mm |
| Corner Radius (RE) | 0.25 mm | Max. Face Grooving Feed (ffg(max)) | 0.2 mm/rev |
| Cutting Edge Material | Carbide | Min. Face Grooving Feed (ffg(min)) | 0.05 mm/rev |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Metric |
| Grade | IC635 | Coating | TiN+TiC+TiN |
| Application | | Face Grooving | Face Grooving Along Shaft | | Body Material | Carbide |
| Tool Type | Face Turn-Groove Inserts | Unit | M |
Product Features

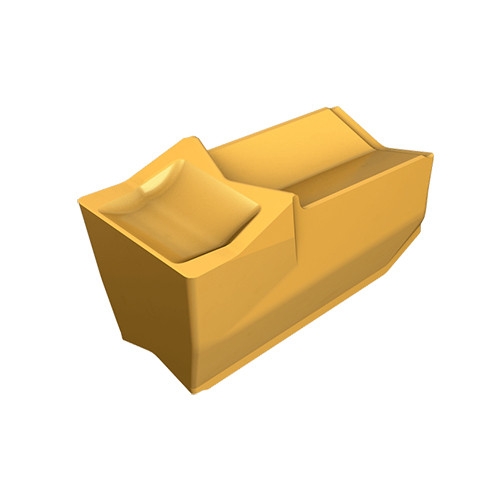

| Family Description | SELF-GRIP, face grooving inserts. | FamilyName | GFF-N |
| Remarks | Grooving depth is limited only by the tool being used | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0055
Name
Face Groove/Turn Indexable Inserts
FamilyName
GFF-N
BrandName
Iscar
