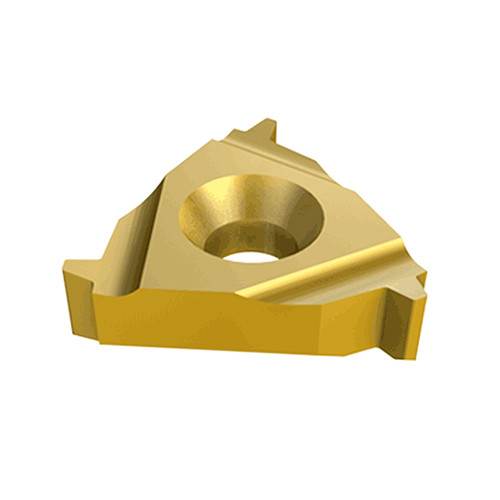

22IL 5 ACME IC508
Internal ACME (ASME/ANSI B1.5-1988 Class 3G) profile, laydown threading inserts, for feed screws.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |

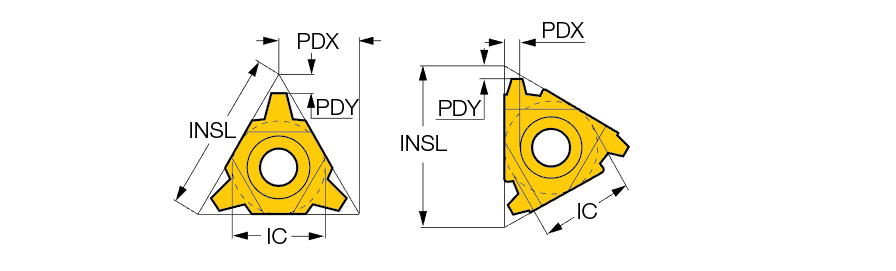

| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 22 mm | Tool Type | Threading Regular Inserts |
| Threads per Inch (TPI) | 5 | Measurement Type | Metric |
| Grade | IC508 | Body Material | Carbide |
| Coating | TiCN+TiN | Thread Form Type (THFT) | AC29 |
| Cutting Edge Material | Carbide | Unit | M |
| Application | | Internal Threading lay down | | Profile Distance EY (PDY) | 1.8 mm |
Product Features
| Family Description | Internal ACME (ASME/ANSI B1.5-1988 Class 3G) profile, laydown threading inserts, for feed screws. | FamilyName | IR/L-ACME |

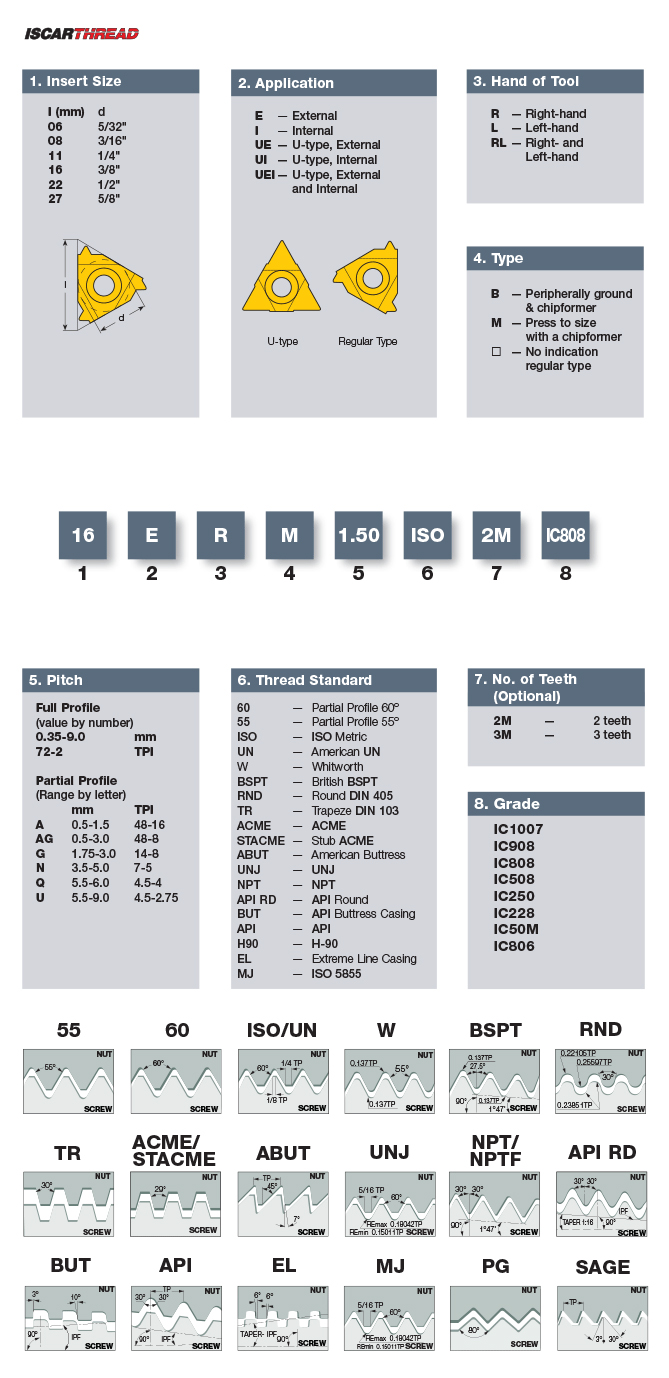

| Remarks | For Insert Identification System, click on More Info ACME ASME/ANSI B1.5-1988 Class 3G | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0114
Name
Laydown Threading Indexable Inserts
FamilyName
IR/L-ACME
BrandName
Iscar
