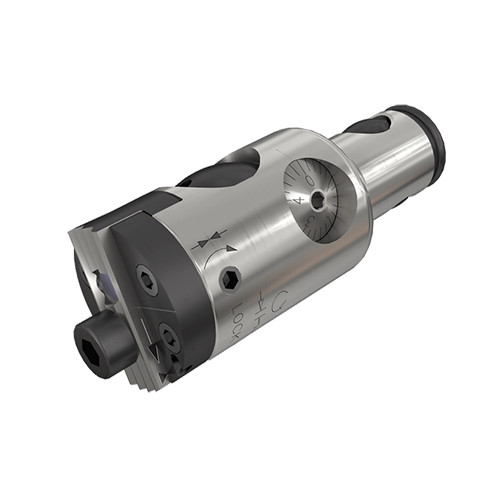

BHF MB50-50X60
Fine boring heads with MB modular system connection and 2 µm direct diametric adjustment for a diameter range of 2.5 up to 108 mm.

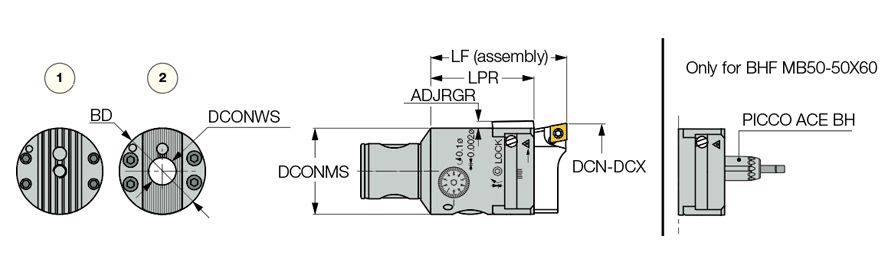

| Cutting Diameter Minimum (DCN) | 2.5 mm | Tool Type | MB Fine boring heads |
| Cutting Diameter Maximum (DCX) | 108 mm | Measurement Type | Metric |
| Functional Length (LF) | 60 mm | Connection Diameter Workpiece Side (DCONWS) | 16 mm |
| Body Diameter (BD) | 50 mm | Rotational Speed Maximum (RPMX) | 8000 rpm |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Body Material | Steel |
| Insert Holders (IH) | IH.. 50.. | Unit | M |
Product Features
| Family Description | Fine boring heads with MB modular system connection and 2 µm direct diametric adjustment for a diameter range of 2.5 up to 108 mm. | COO | Italy |
| Remarks | Click on individual item, then on More Info to see split view of its spare parts and for boring options of BHF MB50-50X60 |
Shipping Info
Weight per item
1.0980
