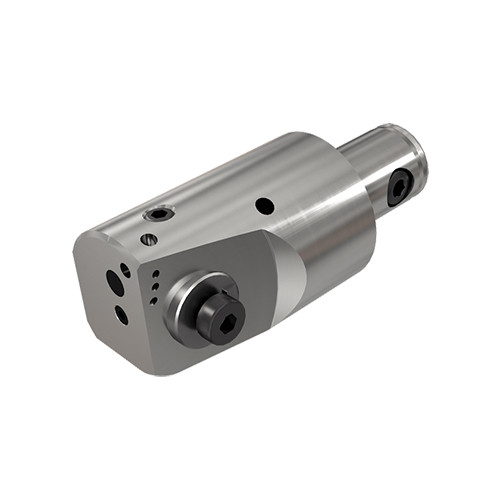

BSFD MB25-31-47-B
Digital fine boring heads with 1 µm accurate adjustment and detachable display for diameter range of 23.9 to 203.1 mm.
| Cutting Diameter Minimum (DCN) | 30.9 mm | Tool Type | MB Fine boring heads |
| Cutting Diameter Maximum (DCX) | 47.1 mm | Measurement Type | Metric |
| Functional Length (LF) | 50 mm | Rotational Speed Maximum (RPMX) | 10000 rpm |
| Body Diameter (BD) | 29 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Unit | M |
Product Features
| Family Description | Digital fine boring heads with 1 µm accurate adjustment and detachable display for diameter range of 23.9 to 203.1 mm. | COO | Switzerland |
| Remarks | For boring options and operating instructions, click on More Info |
Shipping Info
Weight per item
0.2470
