| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 5.5 mm |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Tool Type | Turn Positive Inserts |
| Insert Style | DNGA | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 0.4 mm |
| Insert Size | 150612 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 15.5 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 6.35 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Body Material | Carbide |
| Cutting Edge Material | PCBN | Unit | M |
| Grade | BI05HC |
Product Features

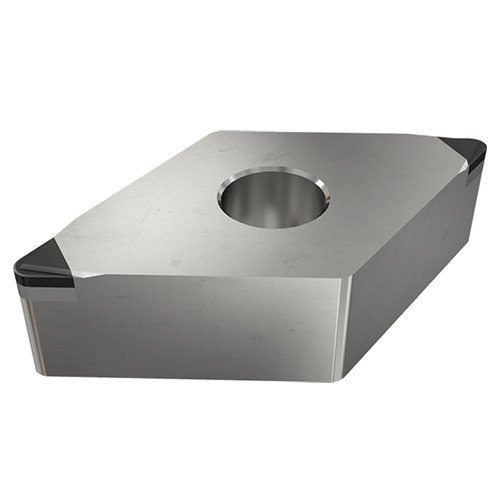

| Family Description | Negative 55° rhombic inserts with 2 MM chipbreaking CBN mini tips for hardened steel and cast iron | FamilyName | DNGA 2MT MM (CBN) |
| COO | Germany | BrandName | Iscar |
Shipping Info
Weight per item
0.0285
Name
Turning Indexable Inserts
FamilyName
DNGA 2MT MM (CBN)
BrandName
Iscar
