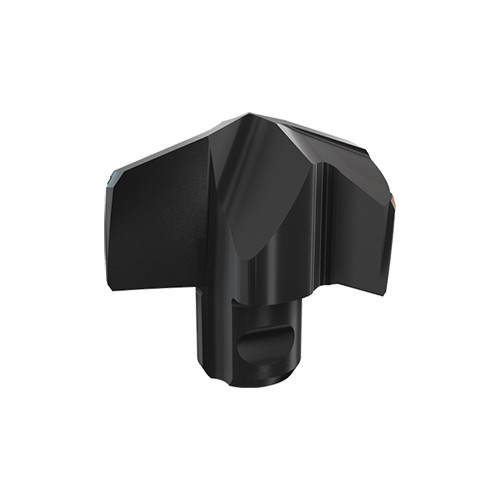

ILP 145-2M IC908

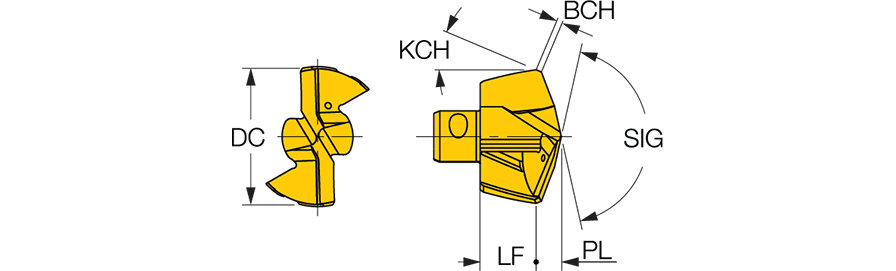

| Cutting Diameter (DC) | 14.5 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Point Length (PL) | 2.55 mm |
| Application | | Drilling | | Point Angle (SIG) | 140 Degrees |
| Grade | IC908 | Coating | TiAlN |
| Tool Type | Drilling Heads | Chamfer Angle | 30 Degrees |
| Insert Seat Size Code (SSC) | 14.0 | Body Material | Carbide |
| Functional Length (LF) | 5.6 mm | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Exchangeable drilling heads for DLN Drills, for Machining ISO P and ISO K materials | COO | Israel |
Shipping Info
Weight per item
0.0135
