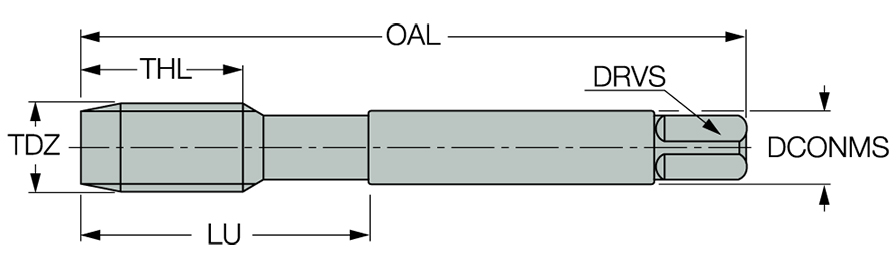

| Thread Diameter Size (TDZ) | M12 | Coolant Supply Property (CSP) | External |
| Thread Pitch (TP) | 1.75 mm | Measurement Type | Metric |
| Thread Standard | THFT | | Grade | PMTI |
| Overall Length (OAL) | 110 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Thread Cutting Part Length (THL) | 22 mm | Thread Form Type (THFT) | M60 |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Flute Count (NOF) | 4 | Body Material | HSS |
| Flute Helix Angle (FHA) | 40 Degrees | Drive Size (DRVS) | 7 mm |
| Standard | DIN 376 | Thread Size | 12 × 1.75 |
| Tool Type | Machine Blind Hole Taps | Unit | M |
Product Features
| COO | Hungary |
Shipping Info
Weight per item
0.0610
