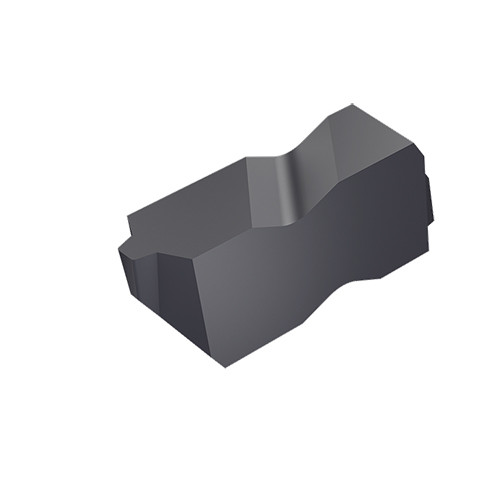

FLAS-3L16-PT-I IC908
Double-ended, precision flat top internal threading inserts for partial topping STUB ACME threading applications
| Thread Standard | THFT | | Application | | Threading (Int.) | |
| Threads per Inch (TPI) | 16 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 8.74 mm | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | STAC29 |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | Double-ended, precision flat top internal threading inserts for partial topping STUB ACME threading applications | FamilyName | STUB ACME THREADING FLAS-PT-I |
| Remarks | For internal thread limits, click on More Info | BrandName | Iscar |
| COO | USA |
Shipping Info
Name
On-Edge Threading Indexable Inserts
FamilyName
STUB ACME THREADING FLAS-PT-I
BrandName
Iscar
